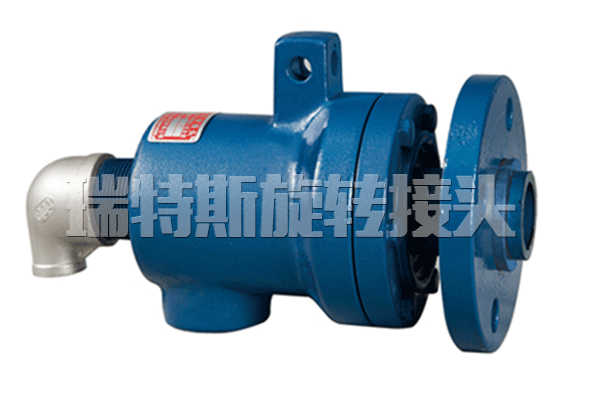

QS-XF(20-50)型旋转接头参数:
适用转速:100RPM
适用温度:220℃
适用压力:1.8MPa
适用介质:饱和蒸汽、过热蒸汽、过热水

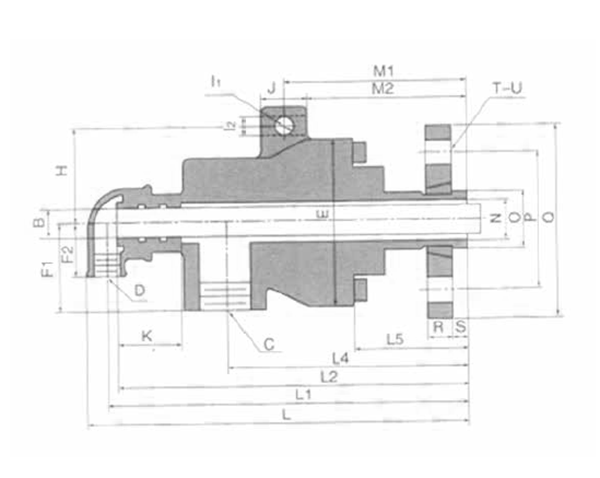

QS-XF型旋转接头 双向流通内管旋转式—半分环法兰连接
规格
|
型号
|
A
|
B
|
C
|
D
|
E
|
F1
|
F2
|
H
|
I1
|
I2
|
J
|
K
|
L
|
L1
|
L2
|
L4
|
L5
|
L7
|
M1
|
M2
|
N
|
20
|
QS-X25-8
|
R3/4
|
12
|
Rc3/4
|
Rc1/2
|
96
|
48
|
30
|
48
|
12
|
12
|
25
|
35
|
195
|
180
|
166
|
118
|
40
|
20
|
89
|
-
|
18
|
25
|
QS-X25-10
|
R1
|
16
|
Rc1
|
Rc1/2
|
75
|
40
|
40
|
55
|
12
|
12
|
26
|
35
|
240
|
225
|
215
|
165
|
47
|
22
|
-
|
95
|
25
|
32
|
QS-X32-15
|
R1-1/4
|
20
|
Rc1-1/4
|
Rc1/2
|
120
|
63
|
38
|
70
|
14
|
14
|
26
|
47
|
250
|
235
|
219
|
152
|
58
|
25
|
-
|
94
|
30
|
40
|
QS-X40-20
|
R1-1/2
|
25
|
Rc1-1/2
|
Rc3/4
|
130
|
70
|
43
|
78
|
14
/td> |
14
|
32
|
45
|
291
|
273
|
254
|
187
|
69
|
30
|
-
|
125
|
38
|
50
|
QS-X50-25
|
R2
|
31
|
Rc2
|
Rc1
|
160
|
80
|
51
|
80
|
18
|
18
|
35
|
36
|
311
|
291
|
270
|
194
|
65
|
32
|
133
|
-
|
48
|
