基本参数:
使用条件:
适用介质:冷却液、热水、冷水、油、压缩空气、低压蒸汽。
压力:1.8Mpa
温度:120°c
转速:200rpm~3000rpm

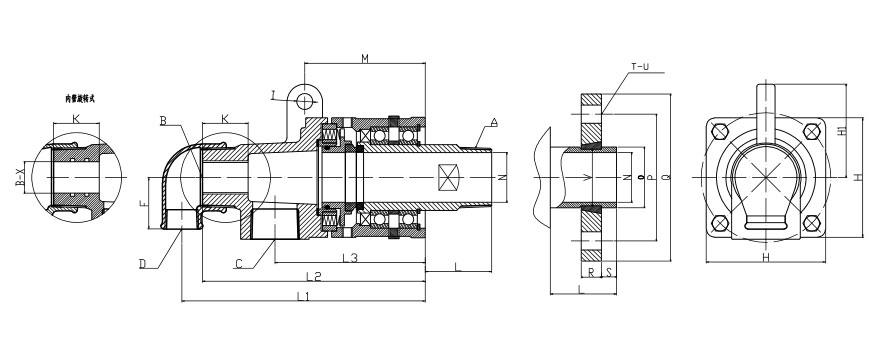

![剖面图](/uploads/allimg/171127/1-1G12G60055218.jpg)
![剖面图](/uploads/allimg/171025/1-1G0251034311K.gif)
规格 | 型号 | A | C | I | M | H | H1 | L | L3 | L5 | N |
25 | RTH-D25 | R1 | Rc1 | 10 | 82 | 74 | 56 | 48 | 99 | 123 | 23 |
32 | RTH-D32 | R1-1/4 | Rc1-1/4 | 12 | 93 | 87 | 66 | 53 | 113 | 139 | 31 |
40 | RTH-D40 | R1-1/2 | Rc1-1/2 | 12 | 98 | 96 | 71 | 60 | 122 | 160 | 38 |
50 | RTH-D50 | R2 | Rc2 | 16 | 119 | 118 | 92 | 66 | 148 | 188 | 49 |
65 | RTH-D65 | R2-1/2 | Rc2-1/2 | 12 | 80 | 150 | 99 | 73 | 165 | 216 | 64 |
80 | RTH-D80 | R3 | Rc3 | 14 | 85 | 165 | 105 | 75 | 175 | 222 | 75 |
100 | RTH-D100 | R4 | Rc4 | 16 | 100 | 205 | 133 | 107 | 210 | 285 | 98 |
![RTHS旋转接头](/uploads/allimg/171025/1-1G025104520339.gif)
![RTHS旋转接头](/uploads/allimg/171025/1-1G025104546395.gif)
![RTHS旋转接头](/uploads/allimg/171025/1-1G0251045595L.gif)
![RTHS旋转接头](/uploads/allimg/171025/1-1G025104612251.gif)
